KALLITHEA

MANUFACTURED BY NIKI ROTOR AVIATION

Kallithea (from Greek “the best view”) is an elegant gyroplane with a spacious cockpit and marvelous view. From the carefully sculpted carbon fiber seats, to the full set of dual flight controls with 4 way trim, to the strong cabin heating system the Kallithea is meant to cruise effortlessly through the sky year round. With the choice of basic to the most advanced integrated avionics, the Kallithea can fit a wide range of budgets and desires.


BREATHTAKING VIEWS

The expansive view from either seat of the Kallithea nearly overloads the senses. From the comfort of an enclosed cabin the view is nearly unrestricted throughout your entire field of view.


fuel injected engine

The Turbocharged Rotax 915iS provides unprecedented levels of performance without sacrificing reliability or redundancy.


all in one avionics

The Garmin Flight Deck brings situational awareness and access to information to another level.  With the large touchscreen display the instruments are easy to scan. Alerts to oncoming airspace, terrain, and other air traffic keep you informed to stay safe.


advanced materials

Extensive use of composites, primarily carbon fiber, give the Kallithea great strength while keeping usable payload high. The composite materials provide greater longevity than their metallic counterparts.

IMG_0031 copy.jpg

INNOVATIVE DESIGN

The Kallithea has many unique design features that collectively create the most memorable flight experience whether traveling locally or cross-country.


kallithea

GENERAL SPECIFICATIONS

Seats
Two/Tandem

Empty Weight
650-800lbs

Max Takeoff Weight
1235 - 1320 lbs

Maximum Pilot Weight
286 lbs

Useful Load
500-585 lbs


PERFORMANCE SPECIFICATIONS

Max Speed
120 mph

Cruise Speed
75-110 mph

Minimum Speed
30 mph

Range
270 sm @ 100 mph

Maximum Climb Rate
600 – 2000 ft/min

Service Ceiling
10,000 – 18,000 feet

Take off Roll (MGTW no wind)
490 feet

Landing Roll (no wind)
65 feet

Maximum Endurance
4 hours + 30 minute reserve


FUEL

Fuel Consumption
3 – 6 gallons/ hour

Fuel Type
Premium Automotive

Fuel Tank Capacity
15.3 gallons


ENGINE

Engine Options
Rotax 912ULS / 914UL / 912iS / 915iS

Horsepower
100 / 115 / 100 / 141

Pre-rotation Range
200-300 RPM


AVIONICS

Standard
Kanardia Indu, TRIG Comm Radio TY91, TRIG Transponder w/ ADSB

Optional
Garmin Flight Deck Suite


PRE-ROTATION & ROTORBLADE

Pre-rotation Engagement
Mechanical (foot pedal)

Pre-rotation Protection
No

Pre-rotation Interruptible
Yes

Pre-rotation From Rear Seat
No

Rotor Type
NACA 8H12 extruded aluminum (Artur Trendak)


WARRANTY

Warranty of the Engine
As per Rotax (18 months / 200 hours)

Warranty of Airframe
300 hours / 2 years

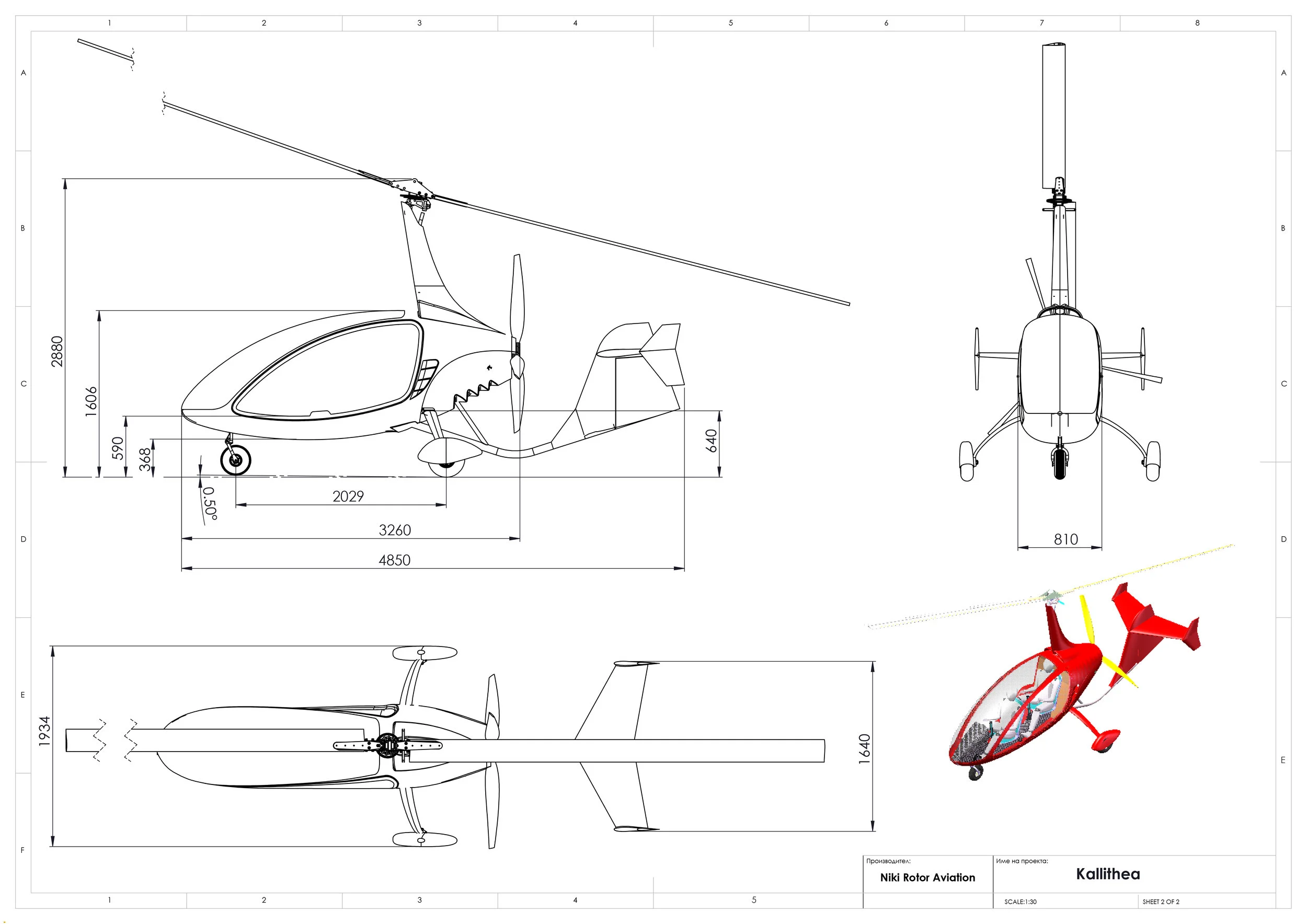

DIMENSIONS

Length
15 feet 11 inches

Height
9 feet 2 inches

Width
5 feet 11 inches

Rotor Diameter
28 feet

Airframe Construction Material
Carbon Fiber

Hull
Carbon Fiber

Tail
Carbon Fiber

Propeller Material
Composite

Power Outlet Voltage
12 volt

Nav/Strobe/Landing Lights
Yes
