AutoGyro is the worldwide leader in gyroplane production with over 2,500 aircraft in our fleet. Gyro Revolution is an official Importer for AutoGyro aircraft in the United States. AutoGyro offers models ranging from tandem, open-cockpit to the most advanced two-seat, side-by-side aircraft. AutoGyro aircraft are used worldwide by hobbyists, enthusiasts, law enforcement, and industries including Agriculture, Medicine, Mapping, Tourism/Transportation and more.

FAA TYPE CERTIFIED

Type Certificates have been issued for the MTOsport, Calidus and Cavalon. AutoGyro is the only gyroplane company in the US to hold a total of THREE Type Certificates and this makes us the only factory-built gyroplanes available in the entire US.  We are very proud of this sky-high level of approvals.

DELIVERING ON DREAMS - DELIVERING ON PROMISES!



MTO SPORT

CAL R2 white shadow.JPG

CALIDUS

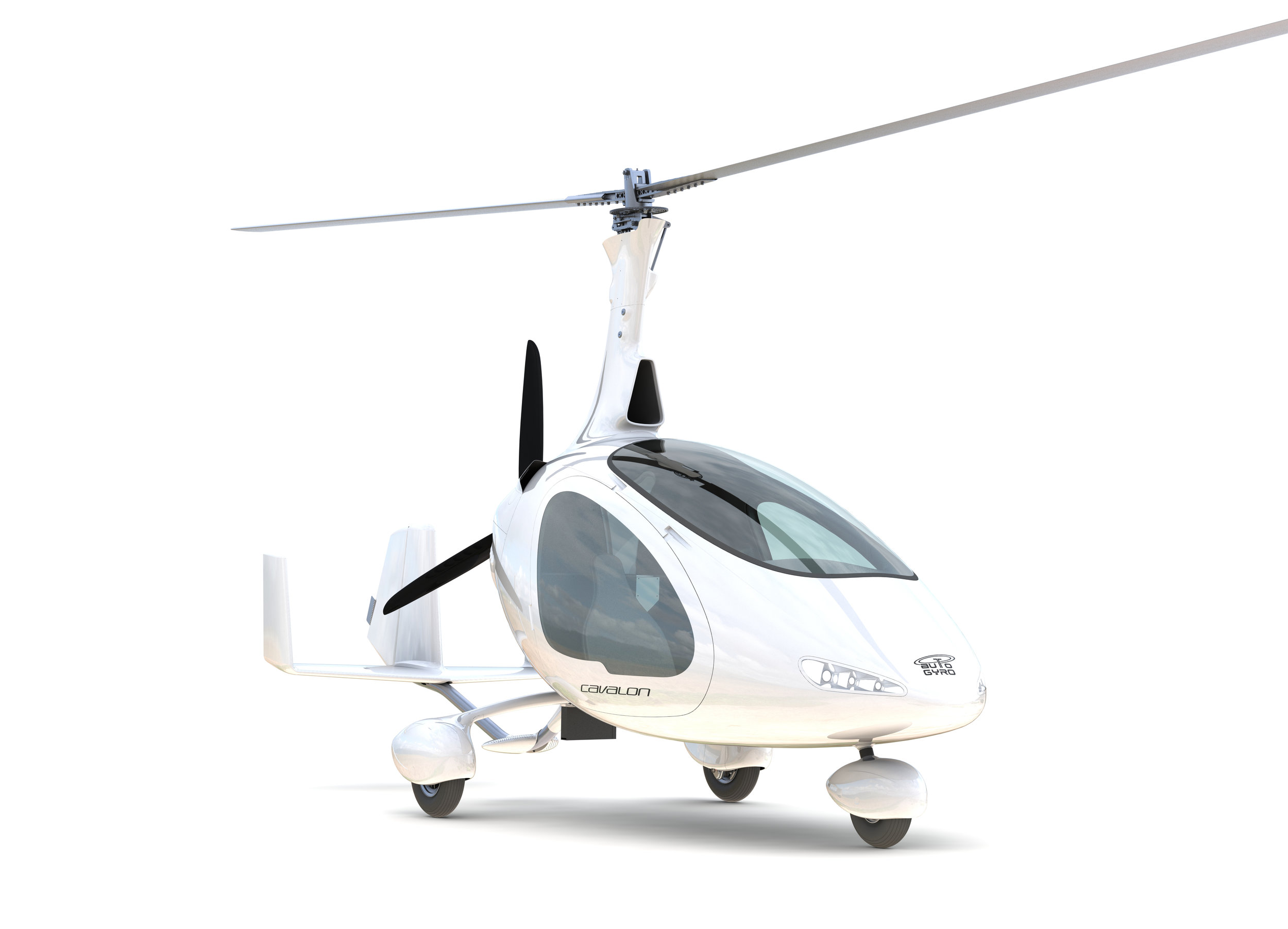

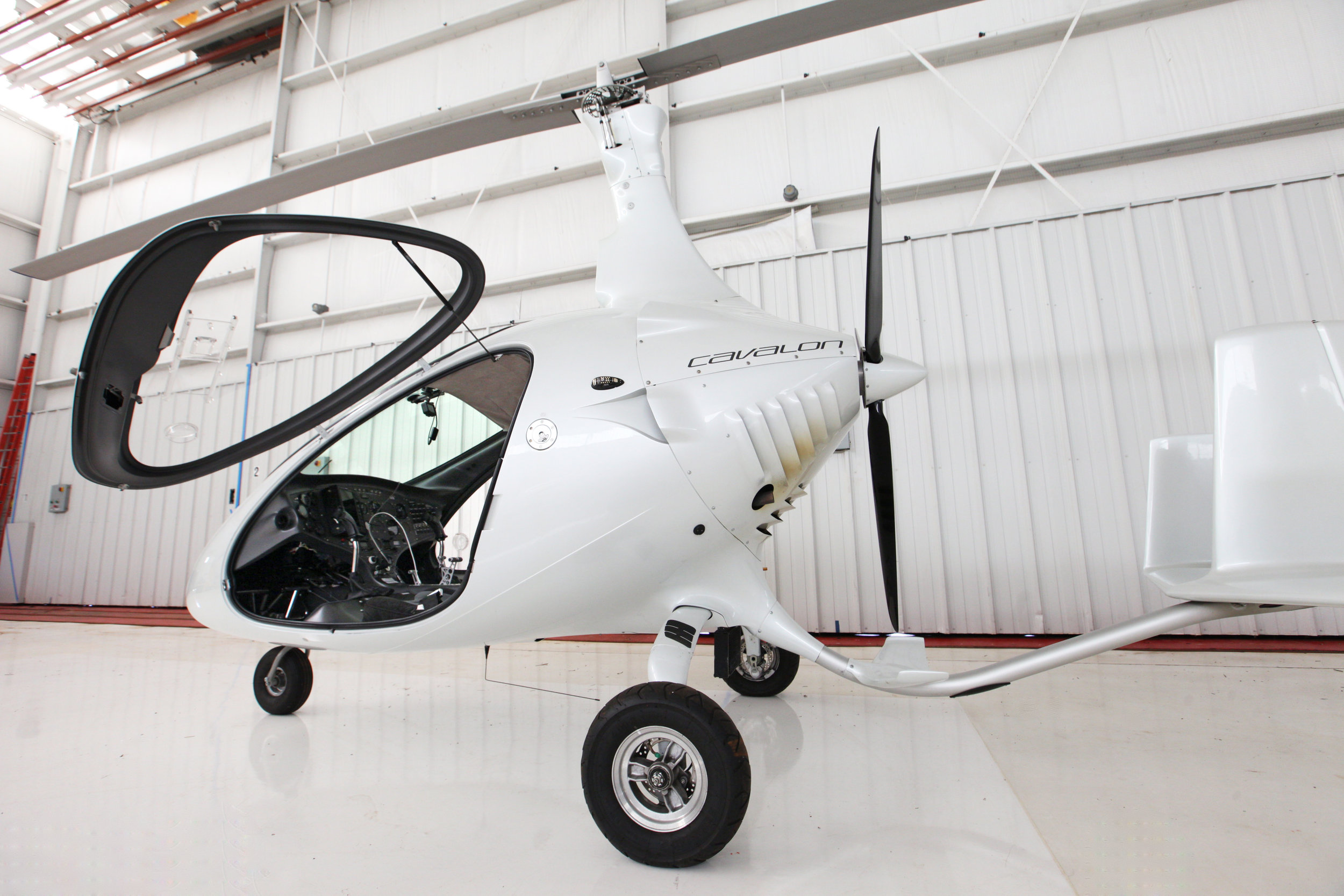

CAVALON

The first side-by-side gyroplane of AutoGyro is a real masterpiece in design, technique, and innovation and overcomes all restrictions and limits. Seated side by side it presents its pilot and passenger an incomparable dimension and comfort.

As a side-by-side model, the Cavalon expands the product range of the AutoGyro product line and offers a huge variety of features. Due to its big tank volume, the Cavalon handles great distances easily and always offers everyone the perfect position thanks to its individually adjustable seats and pedals. From the bottom to the top every wish is fulfilled, the interior offers plenty of room for pilot and passengers, available options include a heated cockpit or heated seats with lumbar support, comfort grip control sticks and if that’s not enough we also offer a Garmin G3X Touch suite on the panel.  Comfort, style and a whole lotta fun too!!

Cavalon Kit Pricing Starts at $115,000
PC Cavalon Pricing Starts at $125,000
All pricing is dependent on Current Euro to US Dollar Exchange Rates




 TECHNICAL DATA & ADDITIONAL LINKS


GENERAL SPECIFICATIONS

Seats - Two/Side by Side
Empty Weight - 710 -760lbs
Max Takeoff Weight - 1235 lbs
Maximum Pilot Weight - 242 lbs
Useful Load - 475 -525 lbs

PERFORMANCE

Max Speed - 120 mph
Cruise Speed - 75-110 mph
Minimum Speed - 25 mph
Range - 380 sm @ 100 mph (+30 minute reserve) - 430 sm @ 87 mph (+30 minute reserve) - 470 sm @ 78 mph (+30 minute reserve)
Maximum Climb Rate - 1000 ft/min
Service Ceiling - 12,000 feet
Take off Roll (MGTW no wind) - 300 feet
Landing Roll (no wind) - 60 feet
Maximum Endurance - 6 hours + 30 minute reserve

FUEL

Fuel Consumption - 3.5 – 6 gallons/ hour
Fuel Type - Premium Automotive
Fuel Tank Capacity - 25.9 gallons

ENGINE

Engine Option - Rotax 915iS
Horsepower - 141
Pre-rotation Range -

AVIONICS

Standard - Analog Flight Instruments, Funkwerk ATR833 VHF Comm Radio, TRIG TT22 Transponder w/ ADS-B Out, Card Compass
Optional - Garmin Flight Deck Suites (Single G3X 10.6” Touch Display, Dual G3X 7” Touch Displays, G3X 10.6” & G3X 7” Touch Displays) ELT Kannad AF 406 Emergency Location Transmitter

PRE-ROTATION & ROTORBLADE

Pre-rotation Range - 200-320 RPM
Pre-rotation Engagement - Electronically Initiated, Pneumatically Actuated
Pre-rotation Protection - Yes
Pre-rotation Interruptible - Yes
Pre-rotation From Rear Seat - Yes
Rotor Type - NACA 8H12 extruded aluminum RSII TOPP 8.4m or 8.6m

WARRANTY

Warranty of the Engine - As per Rotax (18 months / 200 hours)
Warranty of Airframe - 200 hours / 12 months

DIMENSIONS

Length - 15 feet 7 inches
Height - 9 feet 1 inches
Width - 5 feet 10 inches
Rotor Diameter - 27 feet 7 inches / 28 feet 3 inches
Airframe Construction Material - Composite / 4130 Chromoly Steel
Hull - Composite Monocoque
Tail - Carbon Fiber
Propeller Material - Composite
Power Outlet Voltage - 12 volt
Nav/Strobe/Landing Lights - Yes
