2026 - IN STOCK INVENTORY

SPECIFICATIONS
Color – Tesla Deep Blue Metallic
Seats – Two Side by Side
Empty Weight – 754 lbs
Max Takeoff Weight - 1235 lbs
Maximum Pilot Weight - 242 lbs
Useful Load - 481 lbs

PERFORMANCE
Max Speed - 120 mph
Cruise Speed - 75-110 mph
Minimum Speed - 25 mph
Range - 430 sm @ 87 mph (+30 minute reserve)
Climb Rate - 1000 – 2000 ft/min
Maximum Demonstrated Altitude - 12,000 feet
Take off Roll - 300 feet
Take off Distance (to clear 50’ obstacle) - 975 feet
Landing Roll - 60 feet
Landing Distance (clearing 50’ obstacle) - 490 feet
Maximum Endurance - 6 hours + 30 minute reserve

FUEL
Fuel Consumption - 3.5 – 7 gallons/ hour
Fuel Type - Premium Automotive
Fuel Tank Capacity - 25.9 gallons

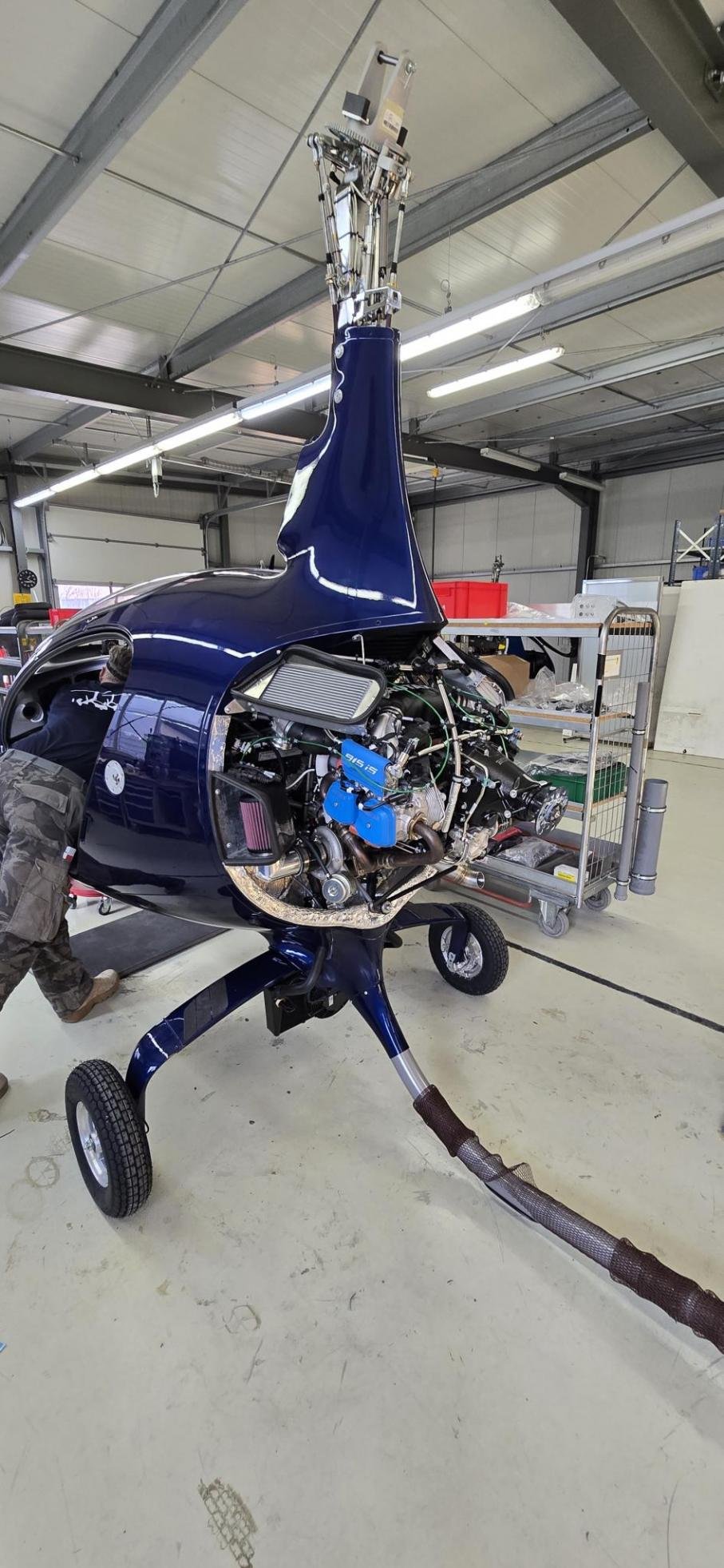

ENGINE
Rotax 915iS
Turbocharged & Fuel Injected
Horsepower – 141hp
Fire Warning System

AVIONICS
Garmin Flight Deck G3X 10.6” Touch Display
Dual Garmin G5 EFIS w/ battery backup
GTR205 Garmin VHF Radio w/ radio head
GTX45R Transponder ADS-B In/Out
Lemo 6 pin + Standard GA headset ports
Garmin GSB 15 - Dual USB port (USB-C & USB-A)
Card Compass

PRE-ROTATION & ROTORBLADE
AG Rotorhead III.1
Pre-rotation Range - 200-320 RPM
Pre-rotation Engagement - Electronically Initiated, Pneumatically Actuated
Pre-rotation Protection
Pre-rotation From Either Seat
Rotor Type - NACA 8H12 extruded aluminum RSII TOPP 8.6m

PROPELLER
HTC 4 blade composite propeller
Ground adjustable
Painted spinner

FLIGHT CONTROLS
Dual controls
Pitch trim both seats (electronic)
Removable instructor stick
Adjustable rudder pedals

DIMENSIONS
Length - 15 feet 7 inches
Height - 9 feet 1 inches
Width - 5 feet 10 inches
Rotor Diameter - 28 feet 3 inches

MATERIALS
Airframe Construction Material - Composite / 4130 Chromoly Steel
Hull - Composite Monocoque
Tail - Carbon Fiber
Propeller Material – Composite

LIGHTING
Nav/Strobe/Recognition Lights AVEO
Instrument panel lighting
High Intensity Hercules LED Landing Light
Power Outlet Voltage - 12 volt

CABIN COMFORT
Alacantara / Leather Seating - blue stitching
Electrically heated seats
Adjustable seats
Pneumatic lumber seat adjustment
Variable cabin heater (air/liquid)
Additional Window Vents
Retractable Sunshade

OTHER
Painted open wheels pants
External magnetic battery charging port
Keel fin painted
Lockable fuel cap
Removable cabin doors
Cargo storage behind seats
Lightweight aircraft cover
Tire refill kit
Floor mats - gray

CONTACT GYRO REVOLUTION
